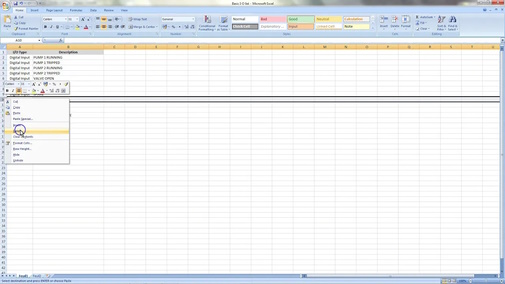

Importing an I/O list from Excel

Description

This tutorial covers how to import your predefined I/O list from Excel to your SkyCAD project, allowing you later on to automatically generate PLC schematics based on your I/O list.

Topics covered

I/O list, Excel import, I/O list import, PLC IO, PLC Schematics.

Main content

NOTE: This tutorial video was created using an older version of SkyCAD.
Ribbon buttons' appearance and positions may differ if you're using version 1.3.25 or higher; e.g. Import IO List moved to Import/Export tab.
Thank you for your patience while we update this tutorial.
